BluAX Instruction Manual

Click the button below to download the latest version of the BluAX Instruction Manual to learn how to power on, connect the device, and troubleshoot it. Or follow the instructions below.

Download Instruction Manual

Part 1: Preparation

1.1 What you'll need to get started

Before we begin, please make sure you have the following items:

  • Your new BluAX device

  • The power cable and square adapter from the box

  • A nearby power outlet (wall socket or extension cord)

  • Your home Wi-Fi password

  • A device with internet access (computer, tablet, or smartphone)

1.2 BluAX components you may interact with

Let’s get you familiar with the BluAX components you’ll interact with during setup.

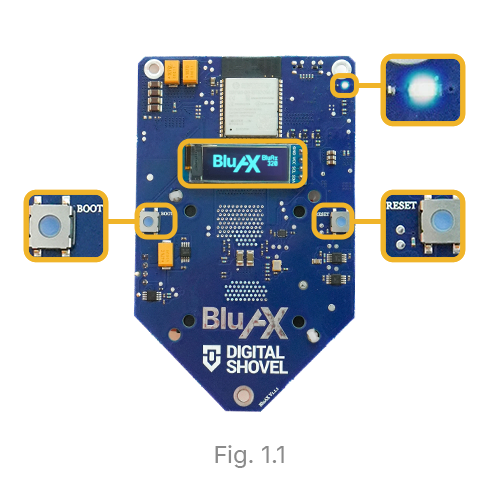

  • [Fig. 1.1] Screen: Located in the center of the front panel.

  • [Fig. 1.1] Boot Button: Positioned on the left edge of the device.

  • [Fig. 1.1] Reset Button: Position on the right edge of the device.

  • [Fig. 1.1] Signal Light (LED): Located at the top-right corner.

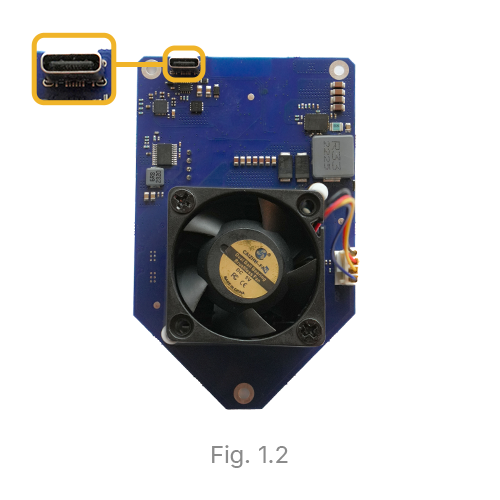

  • [Fig. 1.2] USB Type-C Port: Located on the back side, in the top-left corner.

Part 2: Powering your BluAX

2.1 Follow the steps

  • 1. Turn your BluAX to the back side (the side with the black fan).

  • 2. In the top-left corner, find the USB-C port (small, oval-shaped).
    [Fig. 2.1]

  • 3. Plug one end of the power cable into this port.

  • 4. Plug the other end of the cable into the power adapter, and then plug the adapter into your power outlet.

2.2 What you should expect to see

  • The fan on the back will start spinning.

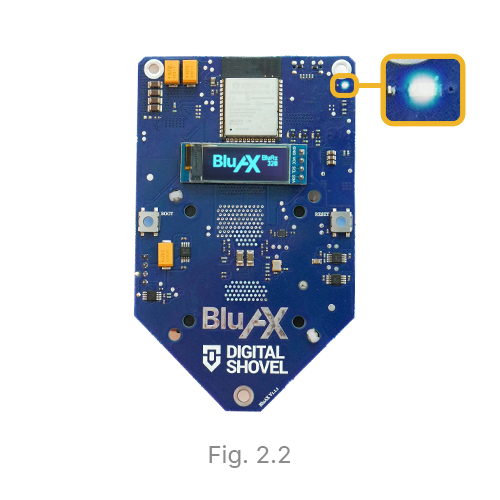

  • On the front side, a small blue light will turn on in the top-right corner.
    [Fig. 2.2]

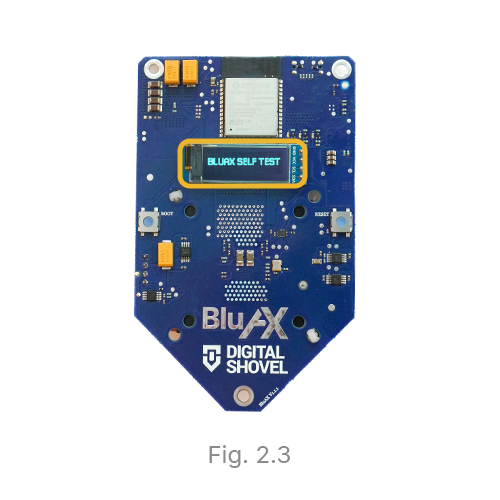

  • The screen will light up and show the text: BLUAX SELF TEST. [Fig. 2.3]

2.3 Troubleshooting

  • If everything works other than the screen (not displaying anything or displaying a glitch): Unplug the device from the wall outlet. Wait 30 seconds, then plug it back in, making sure all connections are snug.

  • If the blue light is on but nothing else: Find the button labeled “Reset” on the right edge of the device and press it once, do not hold for more than a second. If that doesn’t turn on the screen, repeat steps 1-4.

  • If you are not getting any power (no light or screen activity): Check your power outlet to make sure it’s functional. Try plugging the device into a different outlet.
